Creatiive Technologist ◆ Analog Audio ◆ Producer

I design embedded systems, analog circuits, and RF electronics by day — and record music by night. Based in the Netherlands. I believe the most interesting work happens at the intersection of the technical and the expressive.

View Projects Download CV

NL · 52° 14' 23.12" N, 6° 50' 59.89" E

Scroll

/:P0 /:ACADEMIC PROJECTS

Academic Projects

P0 - ACADEMIC PROJECTS

/:P0 /:M1 /:MODULE 1

Module 1

P0/:M1 - MODULE 1

Poster

The poster was made with the porpouse of putting in light the negative efffects of exposure to loud sounds.

Interactive Creature

Interactive creature animation using Processing/p5.js. Control with arrow keys, click to move, right-click to change color, press J to jump.

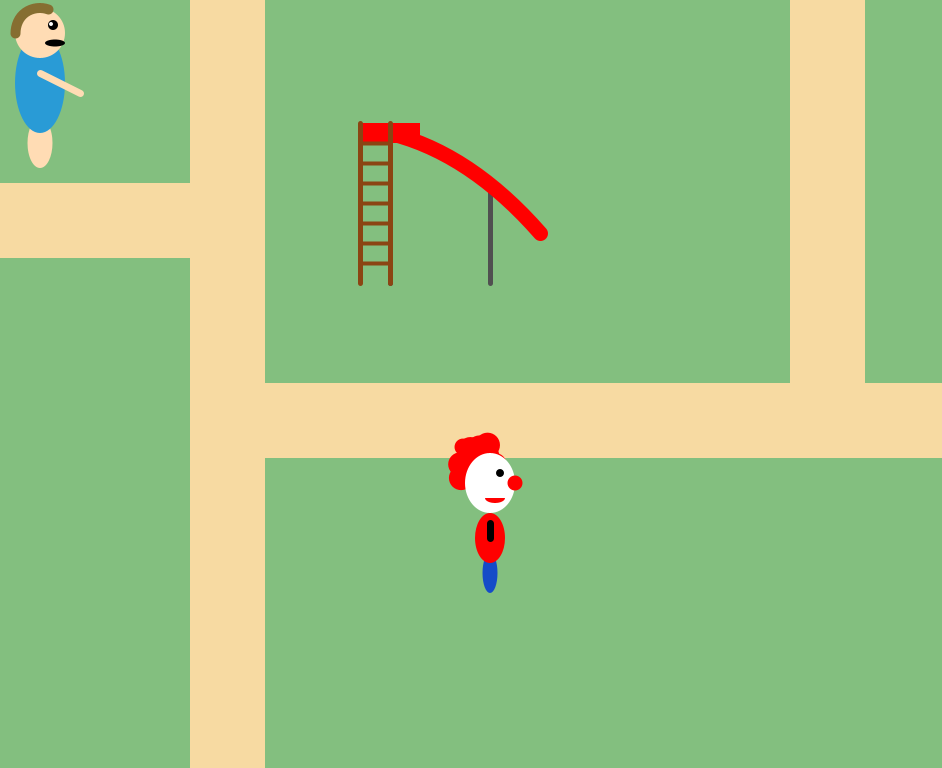

Sports Day Clown

Interactive clown scene with electro hair toggle and thunder effects using Processing/p5.js.

Video Analysis Project

Computer vision project analyzing video data for pattern recognition and object detection.

Hackathon Audio

Audio project from hackathon competition featuring synthesized sound design.

Event Handling

Interactive shop scene with animated hats, door controls, and drag-and-drop functionality using Processing/p5.js.

/:P0 /:M2 /:MODULE 2

Module 2

P0/:M2 - MODULE 2

Data Visualization

Interactive data visualization project for complex dataset analysis.

Created interactive visualizations for large-scale datasets using D3.js with real-time filtering and animation capabilities.

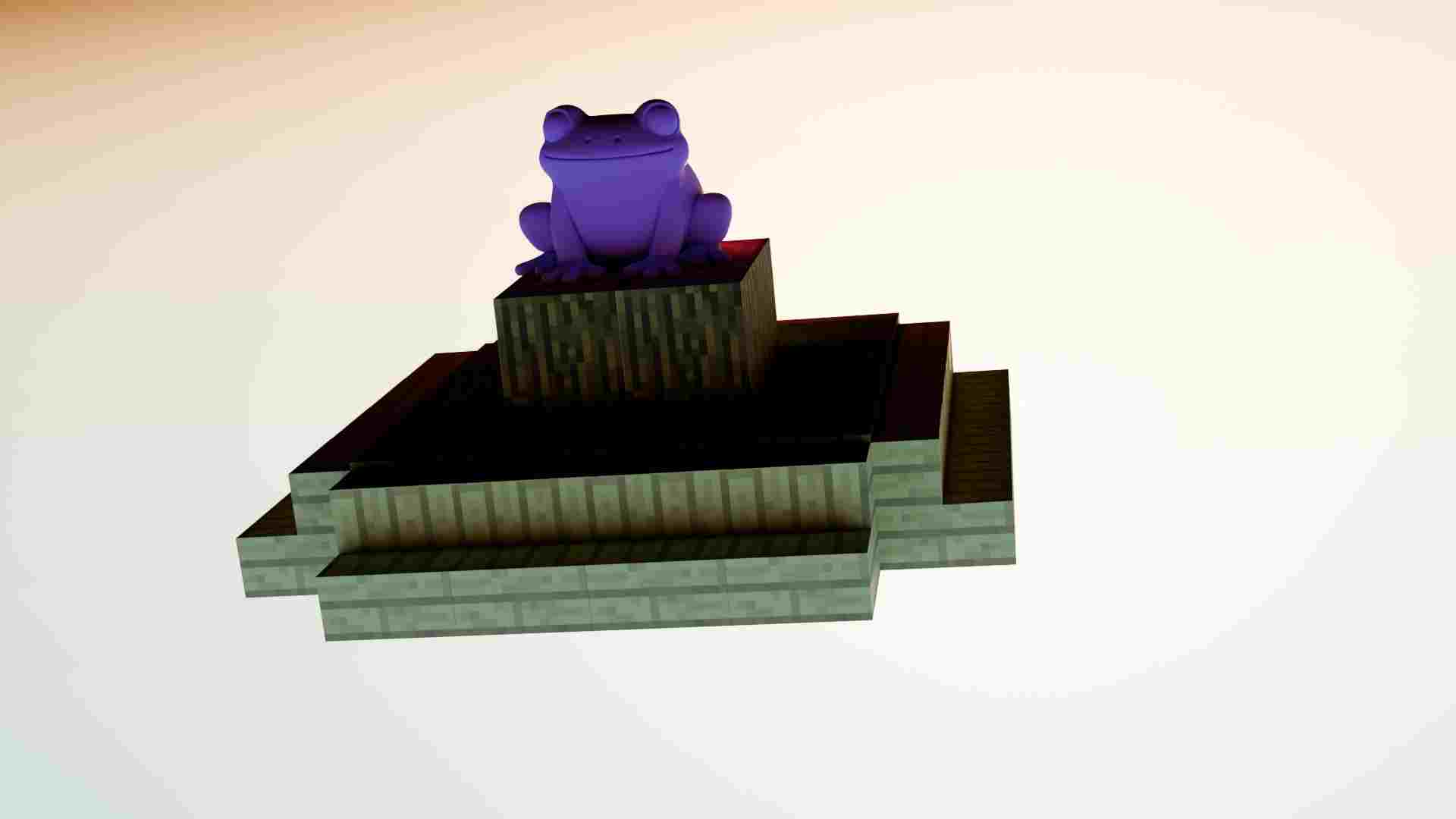

Blender Project 2

3D modeling and rendering project using Blender.

Blender Animation

3D animation project featuring dynamic scenes and rendering techniques.

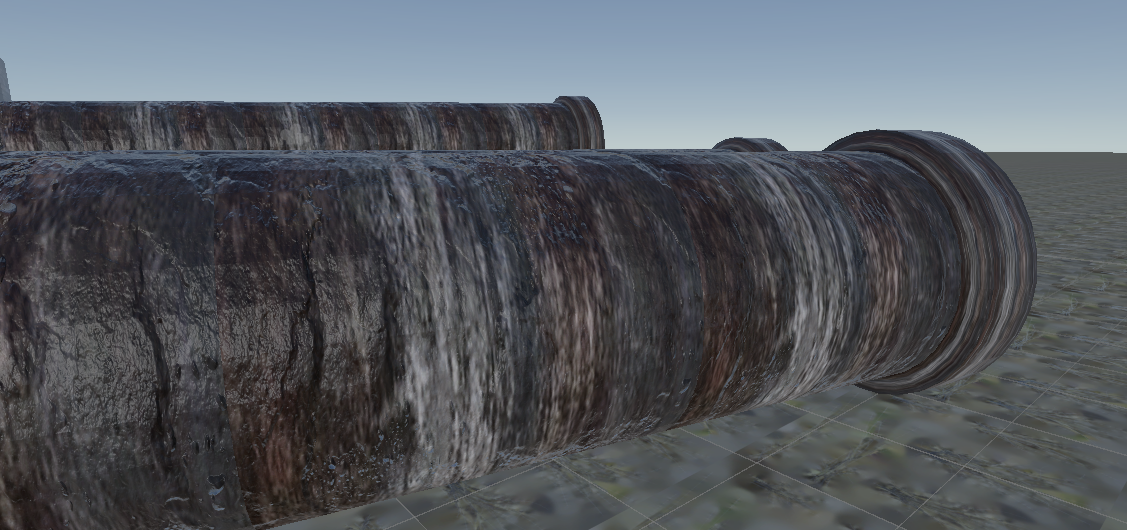

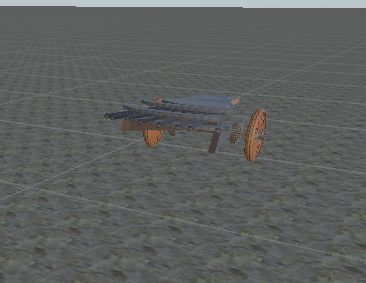

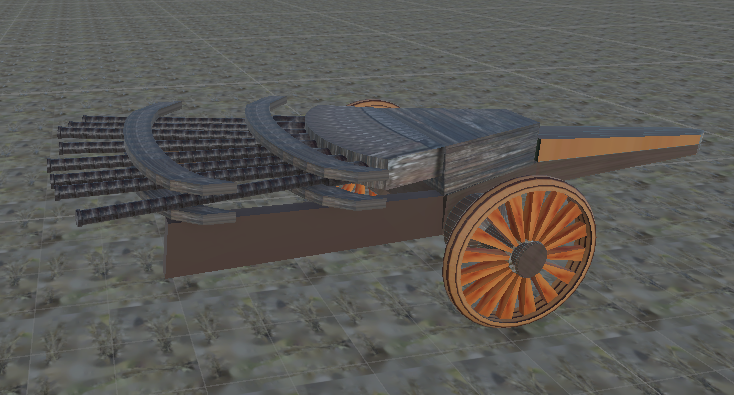

Final Interactive Visualisation assignment M2.

Click the arrow to scroll through the pictures. Link to game: https://st01ca.itch.io/a2-alexstoica

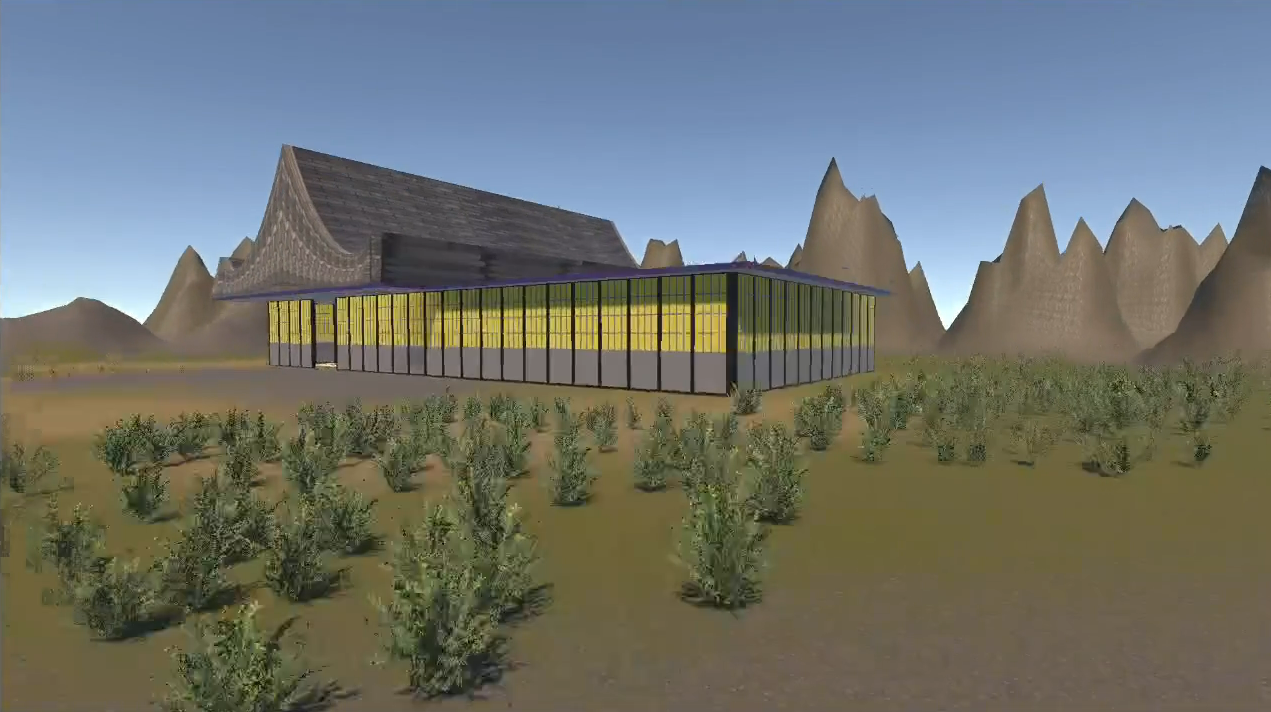

Unity project.

https://st01ca.itch.io/so4-alexstoica This was my third and fourth assignment made during my second module of Creative Technologies for the Interactive Vaisualisation Course.

Algorithms Final Project

Relational database design project for a university management system.

View Technical Details →

Final Project Module 2

Machine learning classification project using various algorithms on real-world datasets.

View Technical Details →

/:P0 /:M3 /:MODULE 3

Module 3

P0/:M3 - MODULE 3

Research Poster

The poster was made with the porpouse of putting in light the negative efffects of exposure to loud sounds.

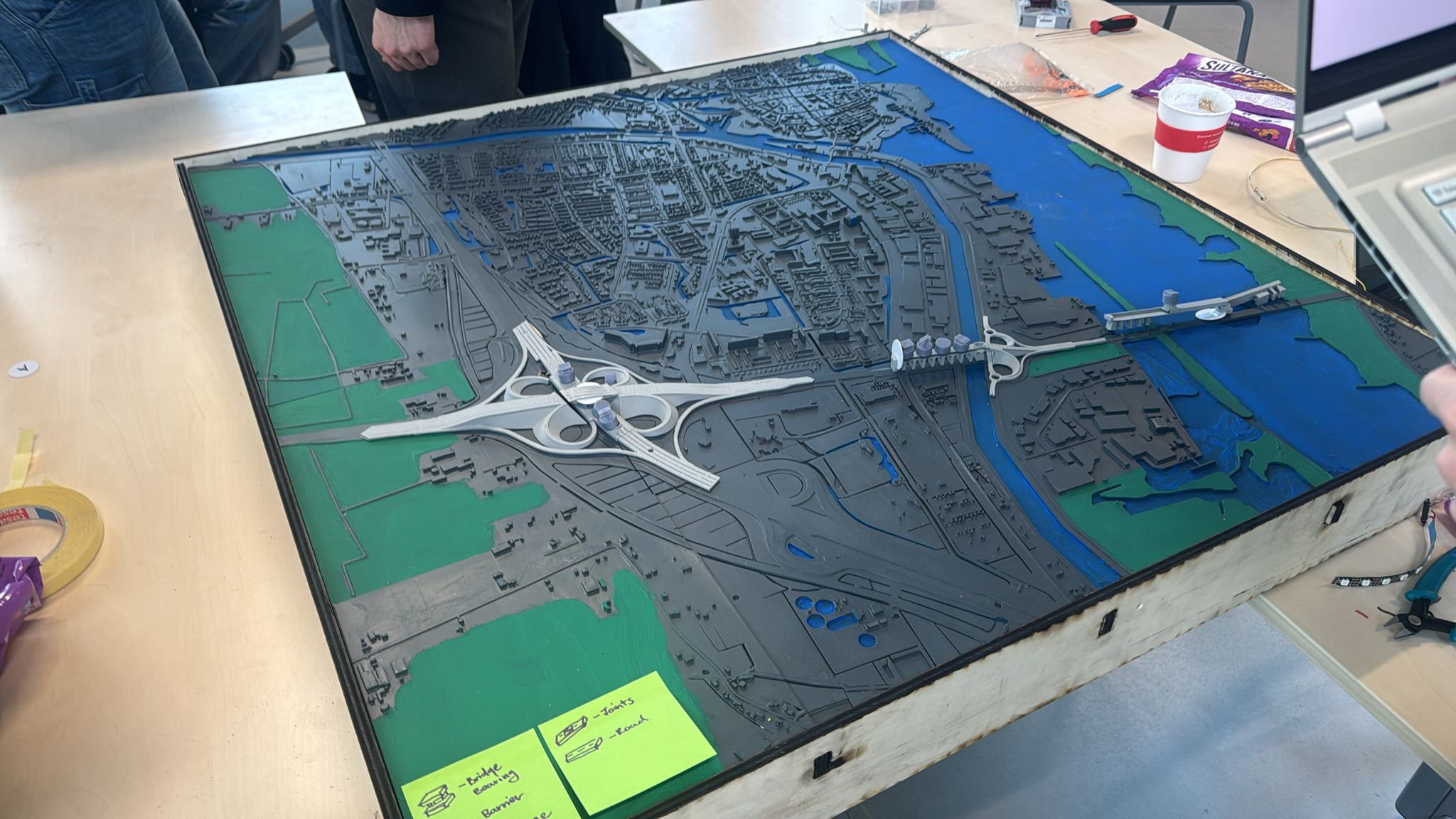

M3 Final Project for Rijkswatestaat

Relational database design project for a university management system.

View Technical Details →

/:P0 /:M4 /:MODULE 4

Module 4

P0/:M4 - MODULE 4

Cloud Deployment

Final Programming project

Deployed microservices architecture using Docker containers and Kubernetes orchestration with auto-scaling capabilities.

/:P1 /:ANALOG AUDIO PROJECTS

Analog Audio Projects

P1 - ANALOG AUDIO PROJECTS

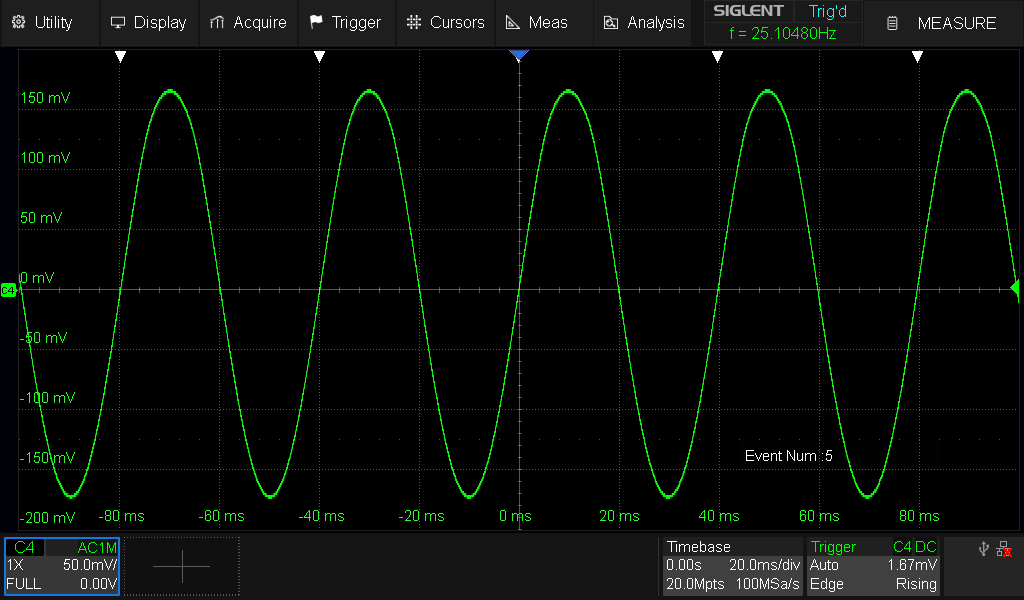

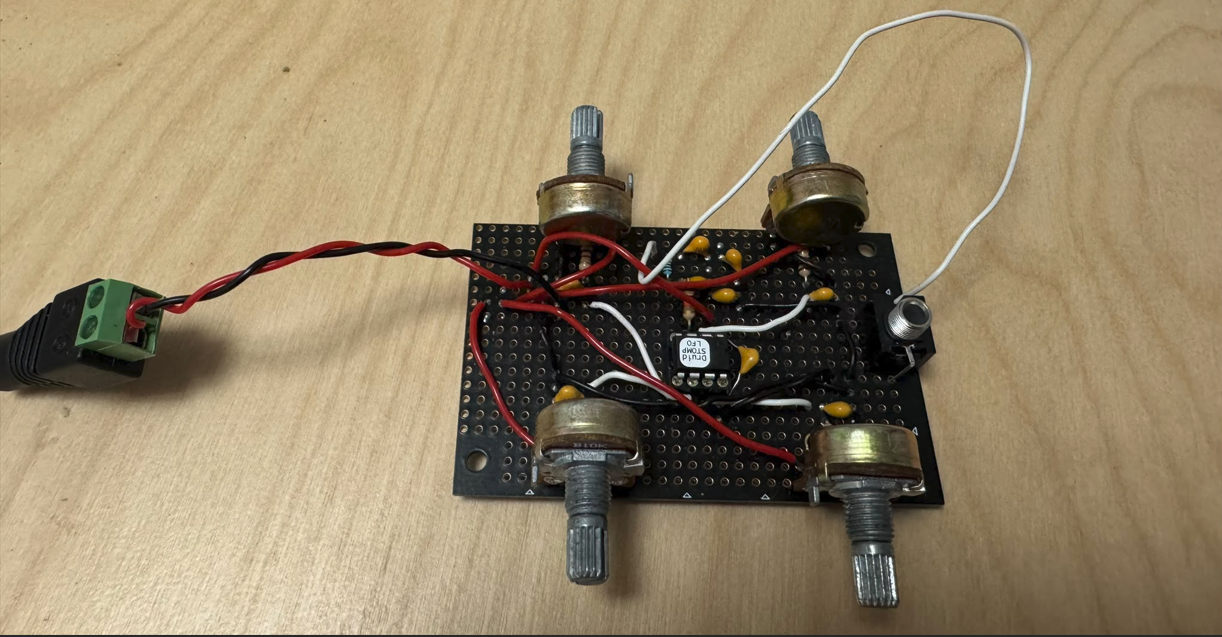

Low Frequency Oscoillator

A LFO based on Electric Druid's STOMPLFO designed for Eurorack systems. It outputs 8 waveforms with a frequency between 0.05Hz-25Hz.

View Full Project

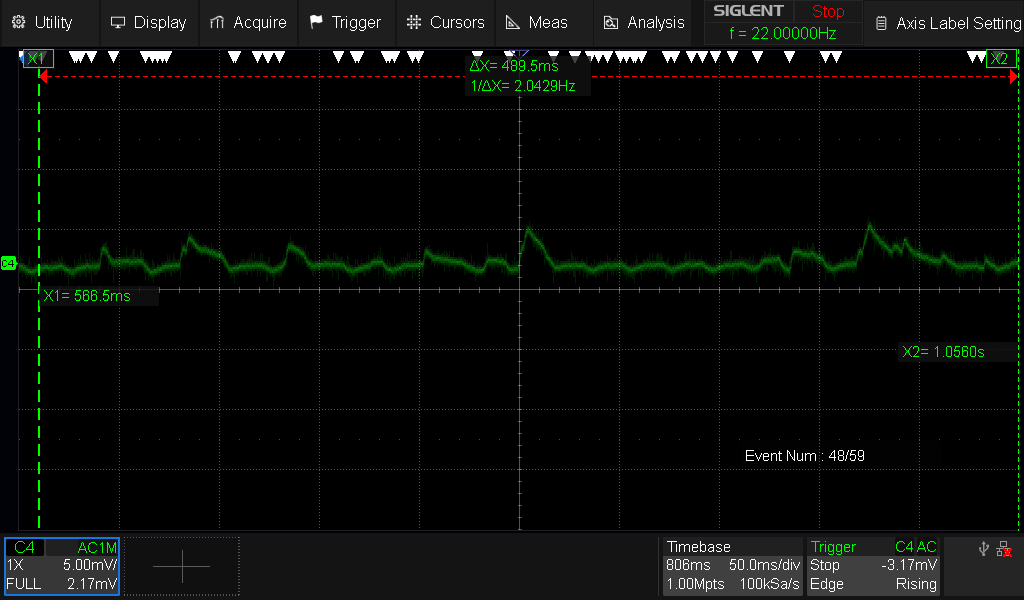

The LFO is built around Electric Druid's STOMPLFO and it can output 8 different waveforms, including 2 random waveforms(slope and levels). It can output these signals at frequencies between 0.05Hz and 25Hz, it has amplitude control, and offset control. It has a 3.5mm mono output and it needs a 5v supply.

This project is ongoing. In the future I will add a panel for the potentiometes and the 3.5mm output and add a eurorack compatible power supply connector board.

AS3340 VCO

An implementation of the Electric Druid's Voltage Controlled Oscillator(VCO) AS3340.

View Full Project

The frontend LNA is designed around a BGA2803 MMIC amplifier with a measured noise figure of 0.9 dB and 21 dB gain across 100 MHz–2 GHz. The PCB uses Rogers RO4003C substrate (Dk=3.55) to minimise dielectric loss at microwave frequencies, with coplanar waveguide traces impedance-matched to 50 Ω.

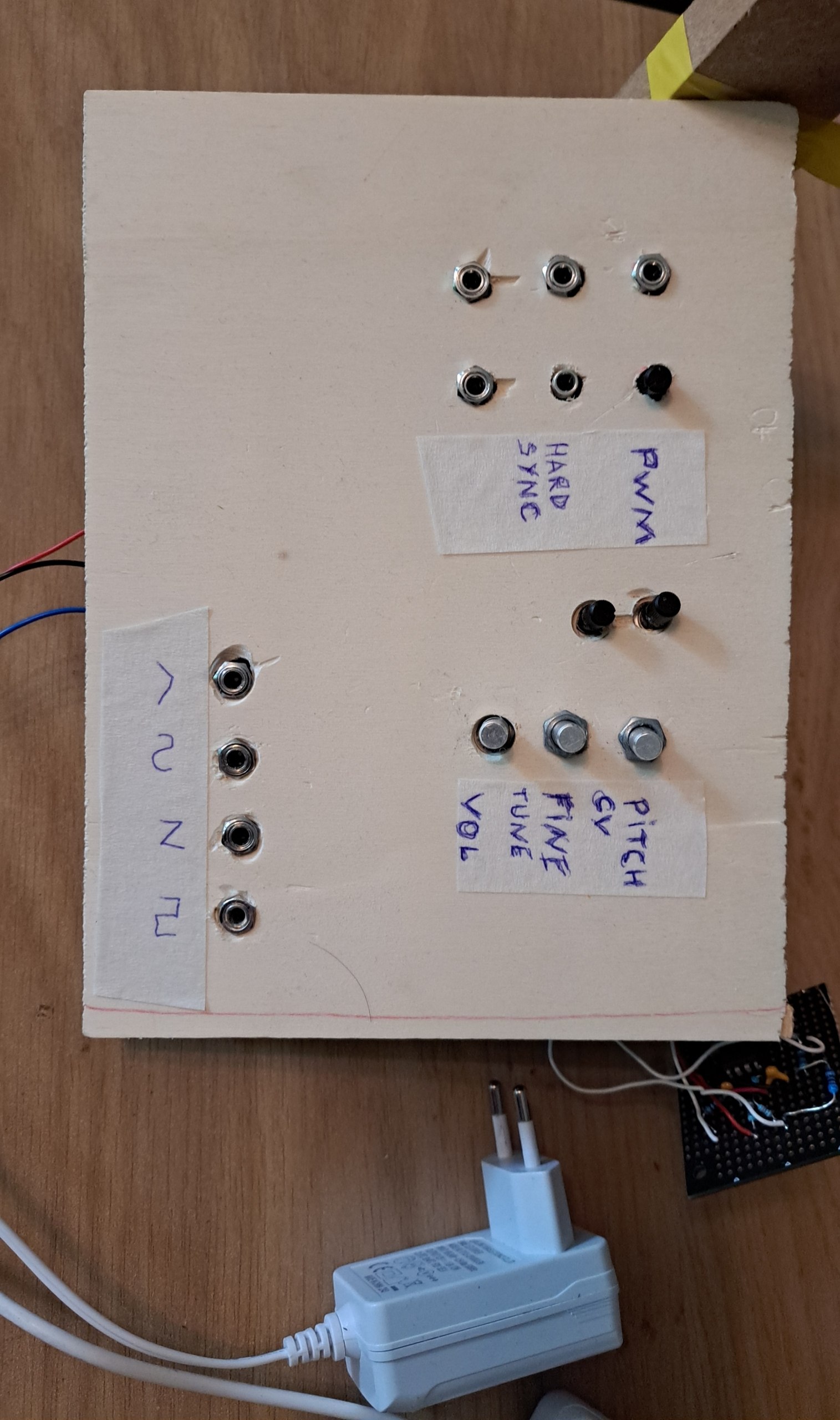

Modular Synthesizer VCO

Eurorack-format voltage-controlled oscillator with triangle core, waveshaper outputs (sine, saw, square, sub), hard/soft sync, and precision 1V/oct tracking using tempco resistors.

View Full Project

The oscillator core is a triangle-core design using a precision integrator built around a TL072 op-amp with a matched transistor pair (THAT340) forming the exponential converter. Tempco compensation is achieved using a 3300 ppm/°C resistor (NTCLE203E3) in the V/oct scaling network, yielding <2 cents drift over 0–50°C.

Waveshaping derives sine from triangle via a diode-ladder wavefolder, and square via Schmitt comparator with variable pulse-width modulation (±5V CV input). Hard sync resets the integrator on the rising edge of the sync input; soft sync inverts the ramp direction. Sub oscillator is a flip-flop divider for -1 oct square wave output.

The PCB is designed in KiCad 7, with a controlled-impedance audio path and star-grounded audio/power domains. The ±12V Eurorack power rail is filtered with a pi-network LC filter per rail. All potentiometers are Alps RK09 series; jacks are Thonkiconn. Panel is 14HP aluminium, laser-etched and anodised matte black.

Tracking accuracy: ≥10 octaves within ±2 cents after trimming. Total cost of BOM: ~€38. Schematic and Gerbers available on GitHub.

/:P2 /:Music

Music

2026 · Mtps & St01ca

dt25

Electronic music made in Ableton & tanzbar 2, tr-8, digitakt 2, octatrack 2.

10 44

2025 · Mtps & St01ca

Howlin

lectronic music made in Ableton — a collaboration with my friend Cristi.
